1.7 to 26.5 GHz Ultra Broadband Coupler ECP226510





Description

Outline 'B'

The Eclipse ECP226510 is a ultra broadband 10dB directional coupler operating from 1.7 to 26.5 GHz. The ECP226510 has low insertion loss, low VSWR and is available with 2 different mechanical packages with SMA female connectors.Eclipse MDI coupler products include a broad range of devices that extend from 1 GHz to 26.5 GHz.

Features

  • Fixed or adjustable attenuation tuning
  • Low insertion loss
  • SMA standard connector
  • Impedance 50 or 75 ohms
  • Compact size
  • Meets MIL-E-5400 and MIL-E-16400 environmental requirements

Specifications

  • Insertion loss dB: Typ. 1.5
  • VSWR: Typ. 1.4:1
  • Coupling dB: 10.0 Nominal
  • Directivity dB: 14.0 Min.

For more info, please see data sheet

Outline drawing coming soon

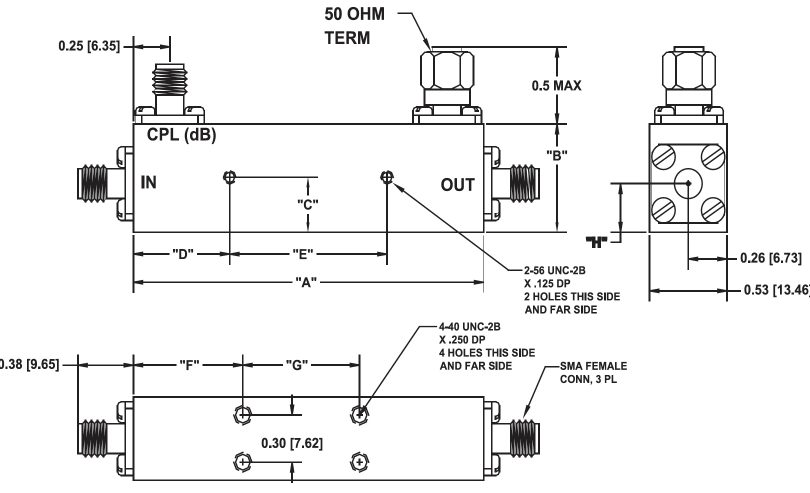

eclipse mdi directional coupler outline

Additional information

Weight 1 oz
