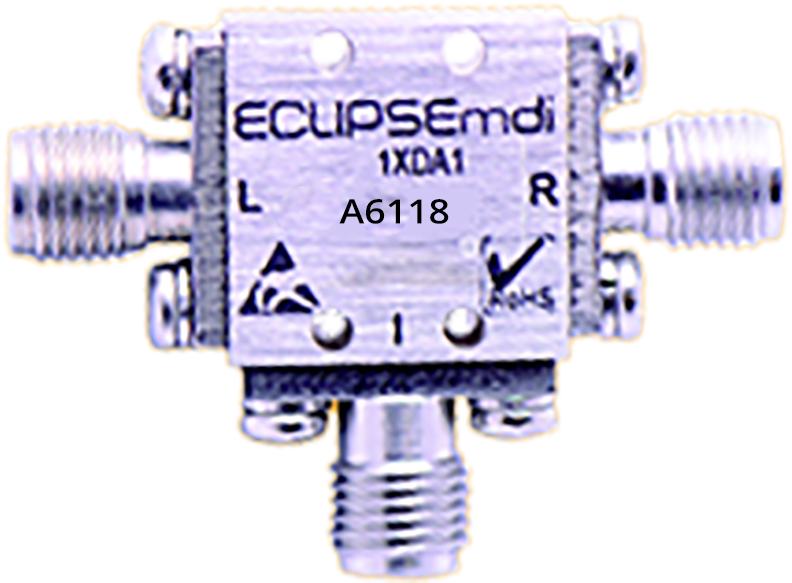

6.0-18.0 GHz Coaxial Triple Balanced Mixer A6118M




Outline 'B'

The Eclipse A6118 triple balanced mixer series operates from 6.0 to 18.0 GHz. These mixers offer multi-octave bandwidth, wide DC to IF response, low conversion loss and high port-port isolation. The A6118 is available with SMA female connectors and offers 2 LO drive levels for versatility.

  • Multi-octave bandwidths
  • Broadband frequency – input and output
  • Wide DC to IF frequency response
  • Low conversion loss
  • High port-to-port isolation


Additional information

Weight 1 oz
