1.0-2.0 GHz Negative Slope Equalizer EQN0102-10





Description

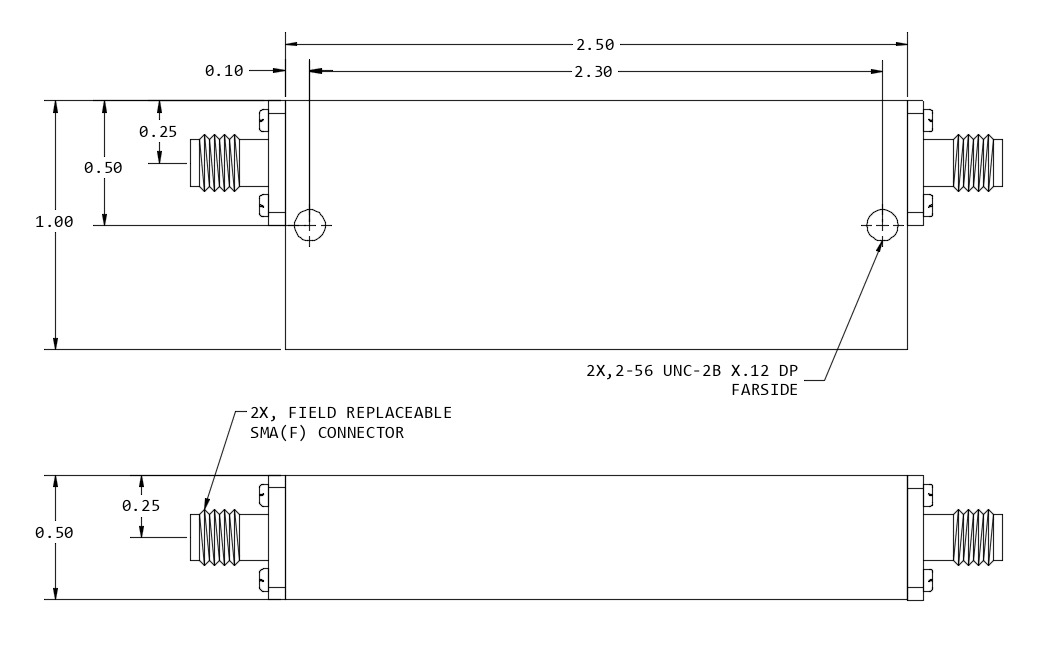

Outline 'B'

The Eclipse EQN-0102-10 is a negative slope equalizer operating from 1.0 to 2.0 GHz. The EQN0102-10 is available with SMA female connectors. Negative Slope equalizers are typically used for applications to offset the excessive loss of long cable runs at high frequencies. The loss characteristic of the equalizer decreases linearly with frequency.

Features

  • Fixed or adjustable attenuation tuning
  • Low insertion loss
  • SMA standard connector
  • Impedance 50 or 75 ohms
  • Compact size
  • Meets MIL-E-5400 and MIL-E-16400 environmental requirements

Specifications

  • Attenuation dB: @ 1.0-2.0 GHz: Typ. 10.0
  • Insertion loss dB: typ. 0.5
  • VSWR @ 1.0-2.0 GHz: Typ. 1.5:1
  • Linearity dB @ 1.0-2.0 GHz: Max. +/-0.5
  • Max input power mW @ 1.0-2.0 GHz: 150

For more info, please see data sheet

equalizer R package
  • Hidden

    Expert Form Tip: Sync an Email Add-On

    To get the most out of your form, we suggest that you sync this form with an email add-on. To learn more about your email add-on options, visit this link.

    Important: Delete this tip before you publish the form.

Additional information

Weight 1 oz
