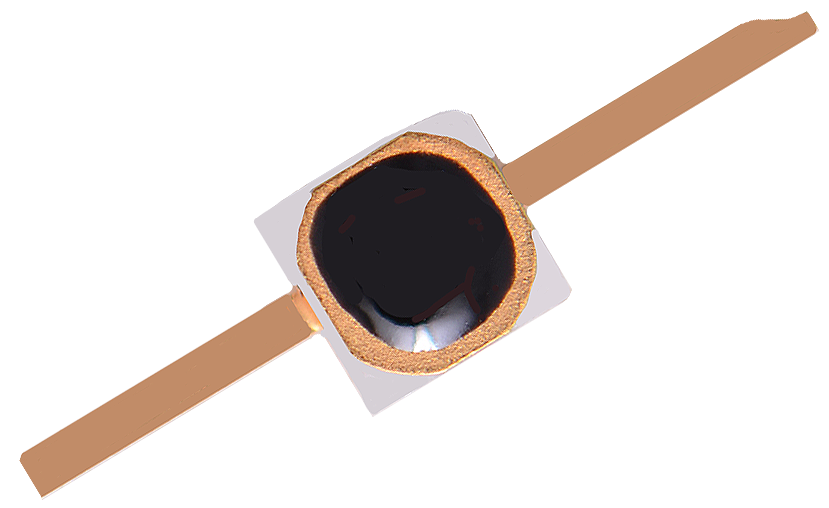

500-600 Ip Planar Tunnel Diode Hermetic MBD 5057-H20





Description

The Eclipse MBD series of Tunnel Diodes are fabricated on germanium substrates with passivated, planar construction and all gold metallization for reliable operation up to +110°C. Unlike the standard tunnel diode varying degrees of sensitivity and video impedance. The back detector is generally operated with zero bias and is known for its excellent temperature stability and fast video rise times.

  • Rugged Germanium
  • Planar Construction Excellent Temperature Stability
  • No DC Bias Required
  • Wide Video Bandwidth



Ip IpCjYRvIp/IvVfVf
MIN µAMAX µAMAX pFTyp. mV/mWTyp. ΩMINMIN mVMAX Vf
5006000.30250602.5400110
h20-mech

Additional information

Weight 1 oz
