Amplifiers

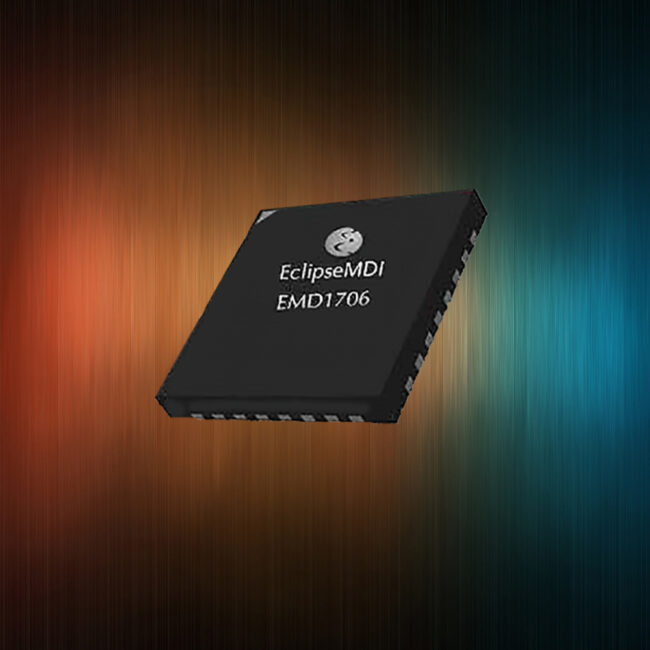

DC-24 GHz MMIC driver amplifier, EMD1706

AmplifiersSeptember 19, 2019

The EMD1706 driver amplifier has a small signal gain of 15 dB with +22.0 dBm P1dB at 10 GHz. This device is ideal for applications that requires saturated output power of +23.0 dBm up to 10 GHz, while requiring only 130mA from a +8 volt supply. Features Broadband Frequency Response Low Cost QFN 4mm leadless…

Read more
